Job completed for George S

Why did the customer contact us?

The customer wants an estimate on waterproofing his crawlspace and he is interested in getting a sump pump.

Solutions provided:

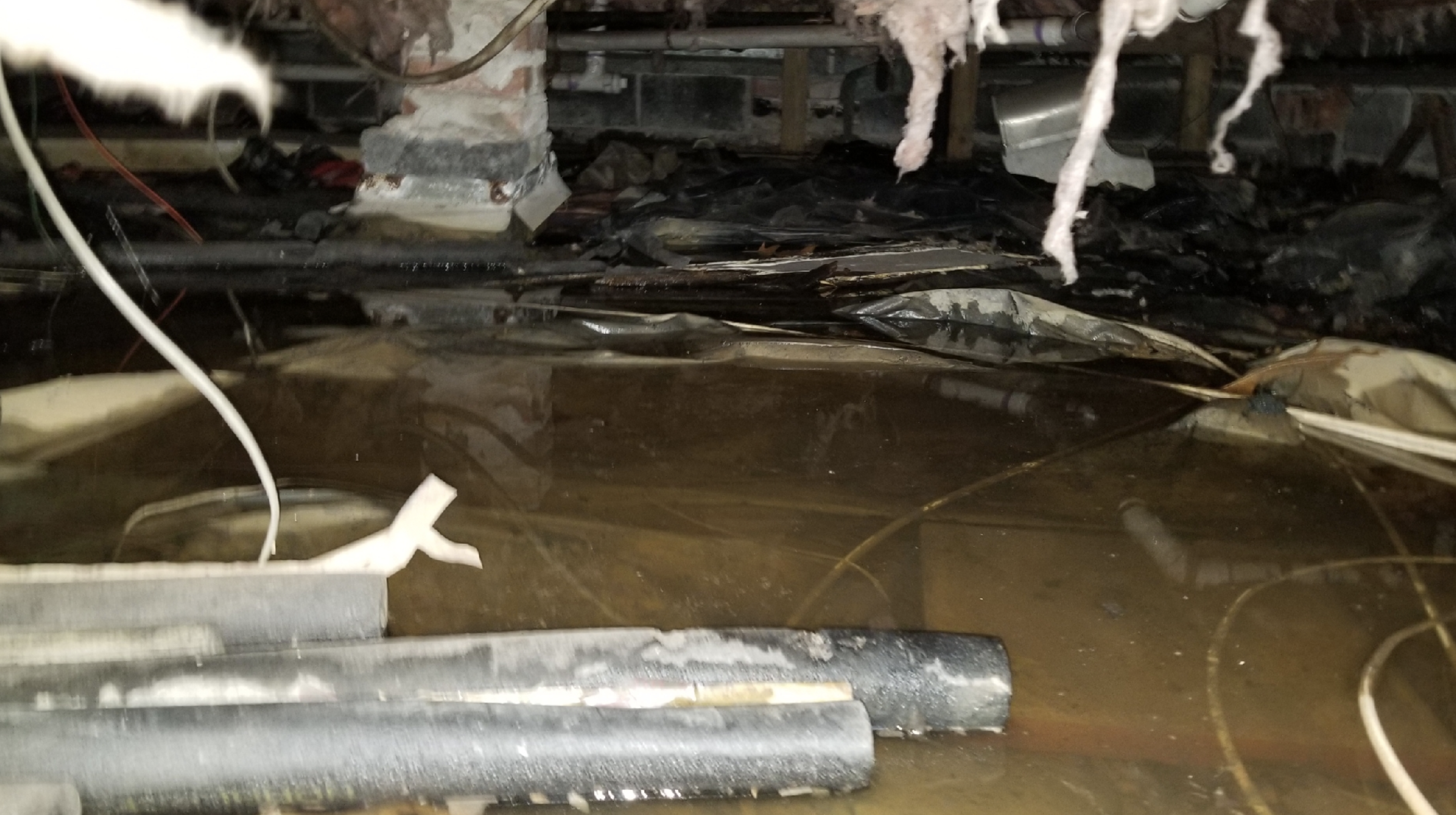

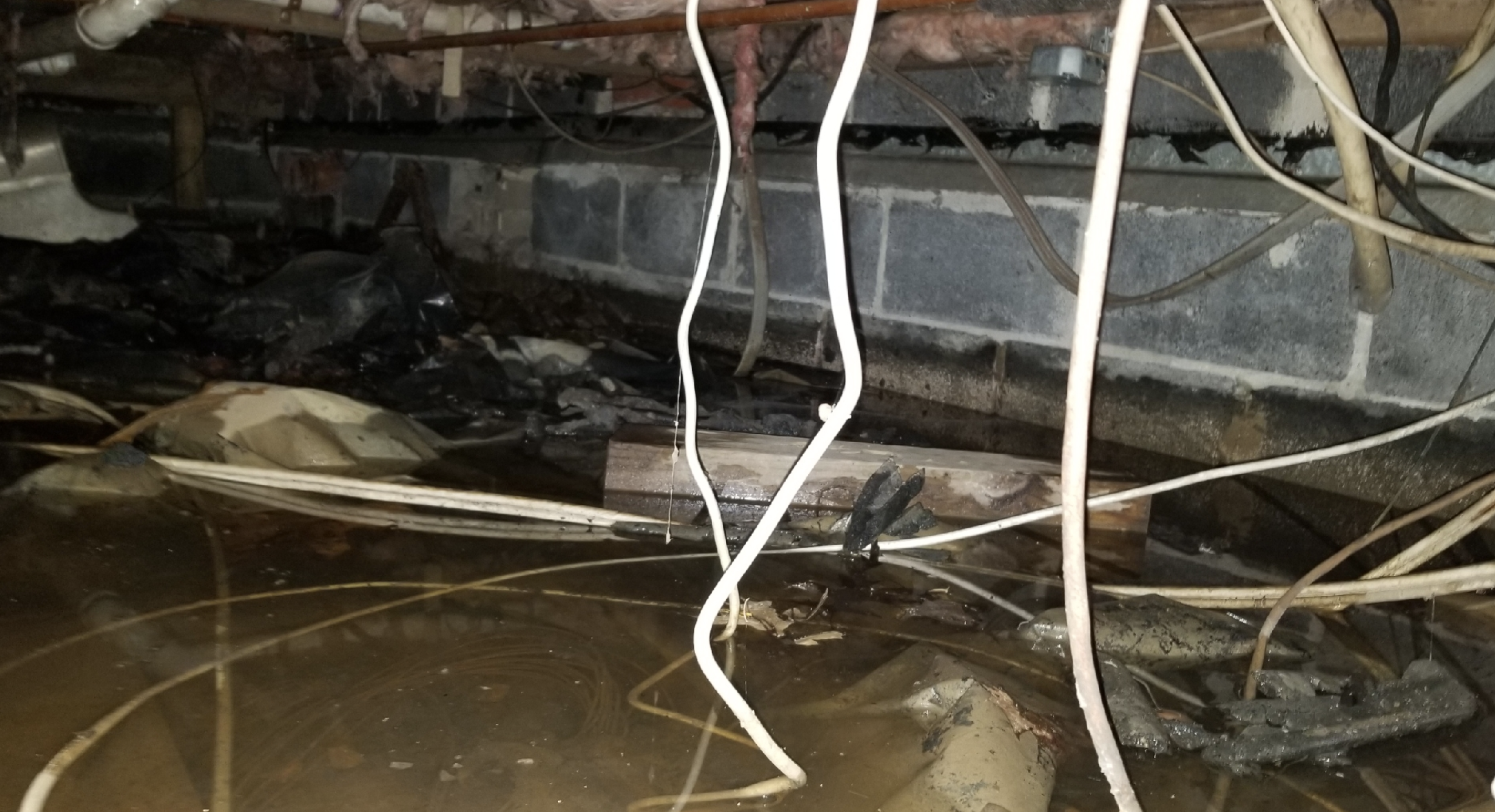

Current crawlspace is full of water, 8 inches approximate. Will need dewatering in two locations prior to any work commencing. Insulation in crawlspace ceiling is damaged and falling into space.
Install temporary vented crock in front of right side crawlspace, discharge out into front yard. Remove root in front of second crawlspace opening on left to gain access to space and dewater.

FastDrain system:
Install full perimeter FastDrain system. Excavate as needed, backfill with washed stone and install FastSump system with liner. Discharge left front section of crawlspace to front yard with box drain and stone. A dedicated outlet will need to be installed by a licensed electrician.

Crawlspace encapsulation:

Remove debris in crawlspace
Remove all insulation in floor.
Install Inducer in duct work in space to condition crawlspace.
Install Crawlshield liner around entire floor, up 6-12 inches and seal to foundation wall.
Install Dimpleshield drain mat under Crawlshield liner to promote drainage and protect Crawlshield liner from damage.

Install R11 Borafoam on all perimeter walls, seal wot walls with foam and tape and mechanically fasten.

Install 2 poly hatches for crawlspace access. Insulate doors and weather strip.

install battery backup and inverter along with high water alarm.

Install WiseAir 55 dehumidifier, with hanger kit and discharge via gravity to sump.

All work carries a 25 year warranty for workmanship and labor. The FastSump, battery, inverter and dehumidifier carries their own respective warranties.

Team members on this project:

Heather Rouff,

Photos & Videos:
